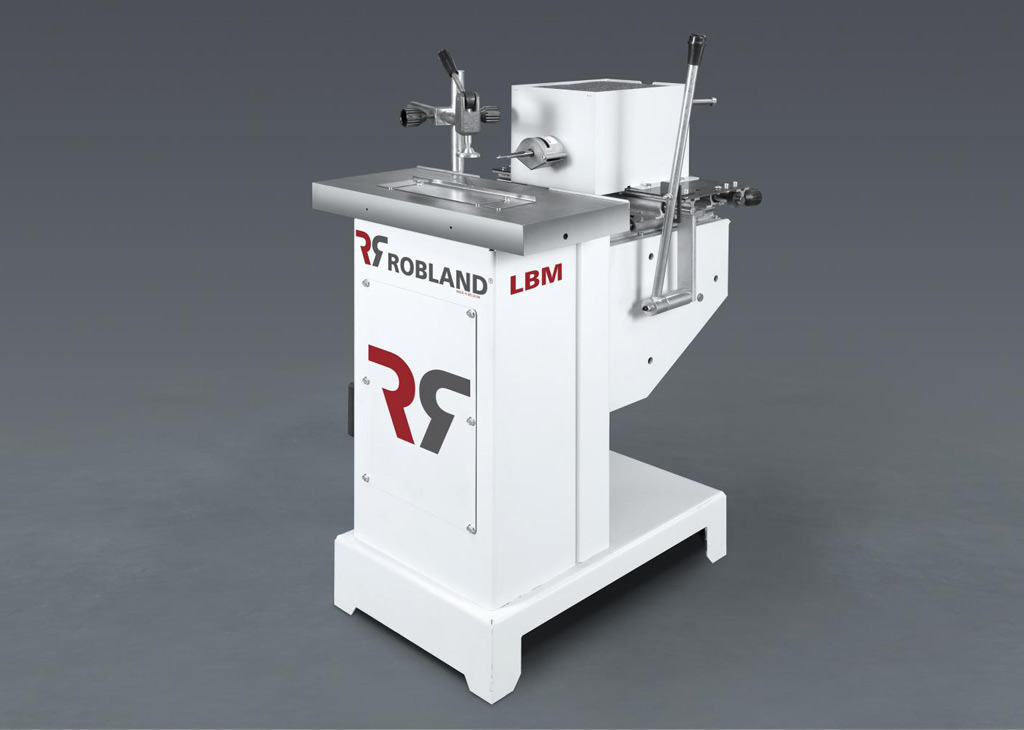

Horizontal slot and mortising machine. The machine base consists of a strong steel construction for accurate vibration free use. The work table and cross table are made in cast iron.
The boring head is operated by two levers with a locking system for comfortable working. The hand wheel for height adjustment provides adjustment precision of 0.1mm.
Specifications:
- Motor: 2.2kW, 3000rpm
- Tabletop size: 600 x 300mm
- Horizontal movement: 180mm
- Main motor: 7.36kW (9.2kW option)
- Maximum drilling depth: 150mm
- Cutting width parallel fence: 1525mm
- Vertical movement of head: 145mm
- Chuck clamping range to 16mm
- Net weight: 150kg
