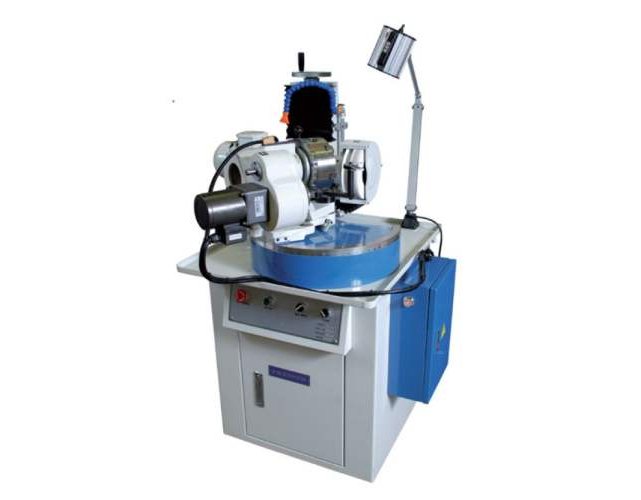

Features include:
1.Grinding capacity: Drills, step drills, counter sink drills, taps, end mill lips, round bars.
PP-60N: Dia.2 ~ Dia.60mm (straight or taper shank)
PP-80N: Dia.4 ~ Dia.80mm (straight or taper shank)
PP-100: Dia.5 ~ Dia.100mm (straight or taper shank).
2.The main spindles have the grinding wheel 2 pieces. The blade and the center of drills can be grinded one time. It can save the time for changing the grinding wheel.
3.Adopt precise 6 jaw self-centering chuck.
4.Set up and grinding is accurate and fast.
5.Dual cams.
- Longitudinal travel of table: 180 mm;
- cross travel of saddle: 160 mm;
- vertical adjustment of wheel head: 160 mm;
- rotary angle of wheel head: 360°;
- clearance angle: 0°~18°;
- point angle: 40°~180°;
- size of wheel: 180 x 32 x 31.75 / 180 x 19 x 31.75 mm;
- speed 3,600 rpm;
- motor: 1/2 HP, 415V;
- N.W. / G.W. - 280 / 300 kg.
