Automatic programmable cut off saw for defecting and optimised cutting.

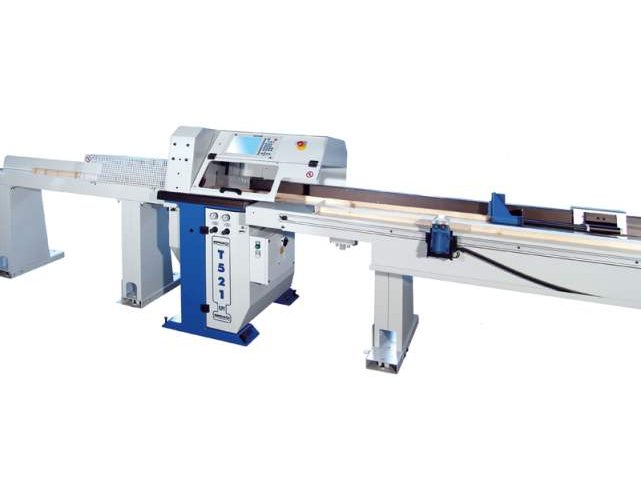

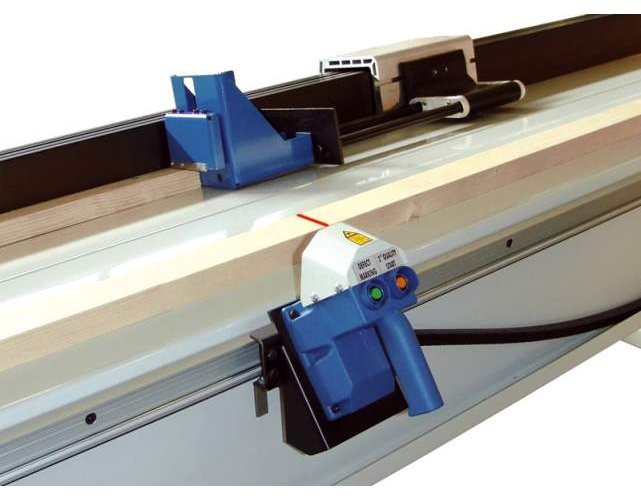

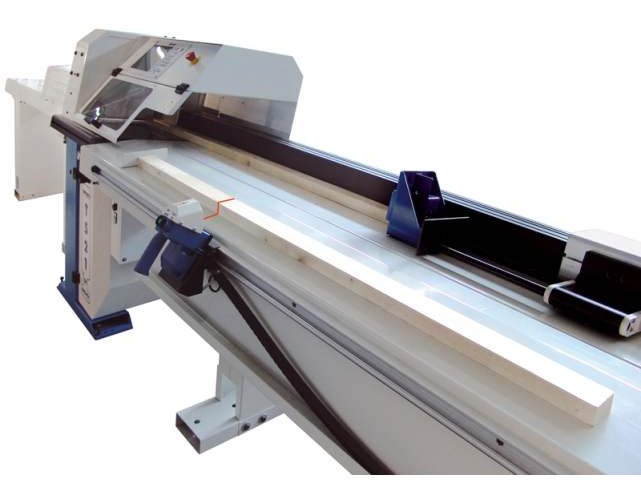

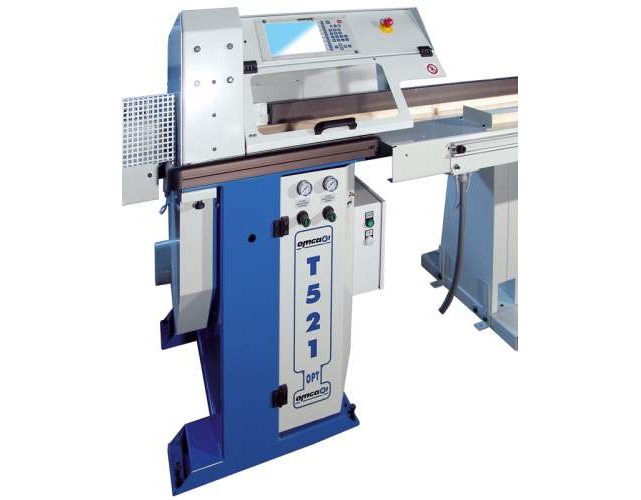

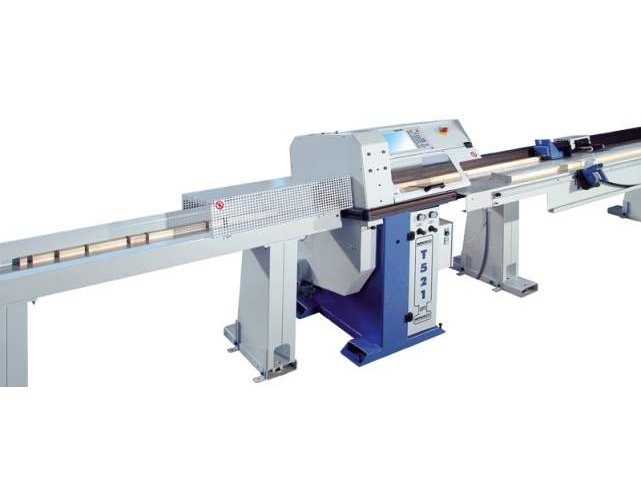

Cutting line composed by a 4 or 6 meters useful length pusher. The pusher carriage is complete with a laser system for reading the length of the board and marking the defects to be cut out. The cut off saw has a saw blade diameter 500 mm. The system allows strict tolerances on the cut length (+/- 0,5 mm on the standard version, +/- 0,2 mm with precision magnetic tape).

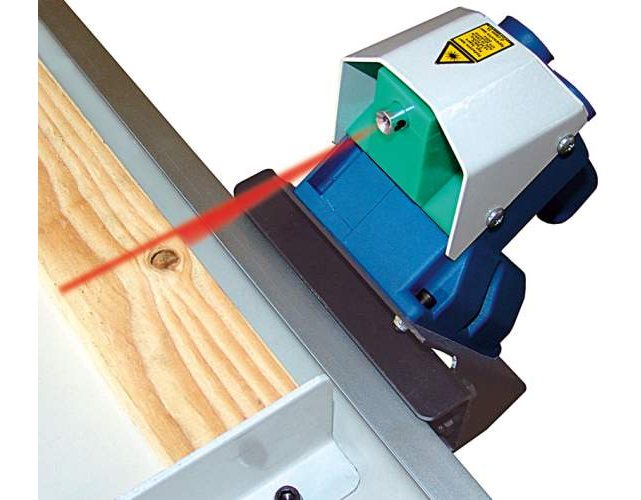

The scanning of the board before introducing it into the machine made by the laser system allows to reach a full optimization and to cut defects without staining the board. The 10° tilt angle of the line ensures the correct positioning of the material against the fence, while the perfect holding of the piece during the cutting cycle is ensured by a vertical pneumatic clamp.
On request the cutting line can be completed with tables or rollers at the out-feed, simple sorting systems, pneumatic gripper for a perfect holding of the piece during the feeding and front clamps.
