FICEP Excalibur 12 1201-DE Single Spindle Drill Beamline

  • FICEP Excalibur 12 1201-DE Single Spindle Drill Beamline

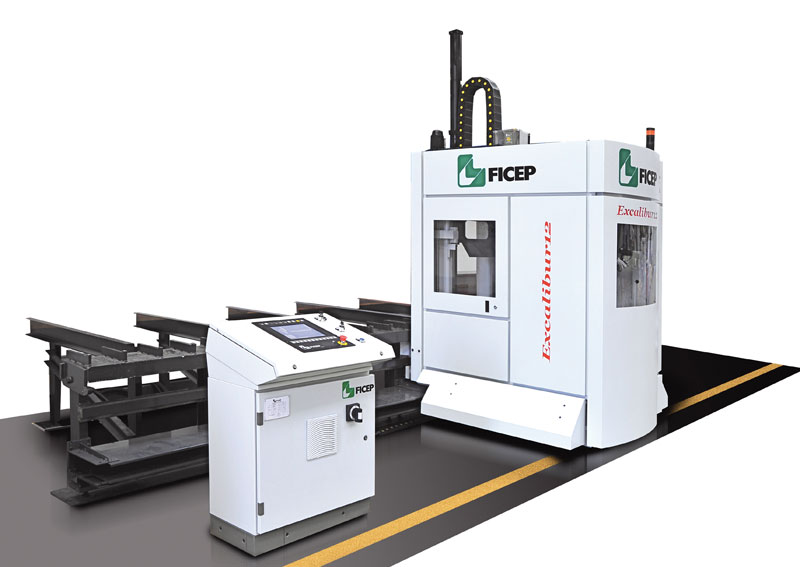

    FICEP Excalibur 12 1201-DE Single Spindle Drill Beamline Ficep038

    The Excalibur 12 single spindle beamline is ideal for smaller fabricators or workshops with limited space. The versatile cantilevered design positions the spindle anywhere along the workpiece eliminating the space required for infeed and outfeed tables – typically around half the space of a multiple spindle beamline.

    Features include:

    • processing of flat bar, angles, tubes, I-beam & C-channel sections
    • versatility and high productivity
    • lower cost investment with reduced workshop footprint
    • precision movement of high speed spindle head
    • allows drilling, tapping and milling operations with through spindle coolant feature
    • scribing facility for part identification and layout guides
    • automatic double clamping system eliminates clamping forces on the table
    • programming directly from the control panel or from your CAD office
    • laser controlled reference positioning for rapid setup of workpieces
    • parts can be loaded or turned by the operator while the machine is working on another section

    Click the Video Tab above to view the features of the Excalibur and see the machine in action.

    FICEP are world leaders in structural steel beamline machines. All FICEP machines are made to exacting standards in Italy.

    EXCALIBUR 601 DE 1201 DE
    Standard maximum beam length 12 m

    40 ft
    12 m

    40 ft
    Maximum drilling diameter 40 mm

    40 mm

    Spindle power 7,5 kW

    19 kW

    25,5 HP
    Spindle rotation speed 180
    Max. profile dimension 610 mm

    1200 mm

    X axis positioning speed (frame) 35 mt/min

    115 ft/min
    35 mt/min

    115 ft/min
    Y axis positioning speed (drilling head) 12 mt/min

    39,5 ft/min
    12 mt/min

    39,5 ft/min
    CNC Tauro control unit 3 axis -
    CNC Minosse control unit - 4 axis
