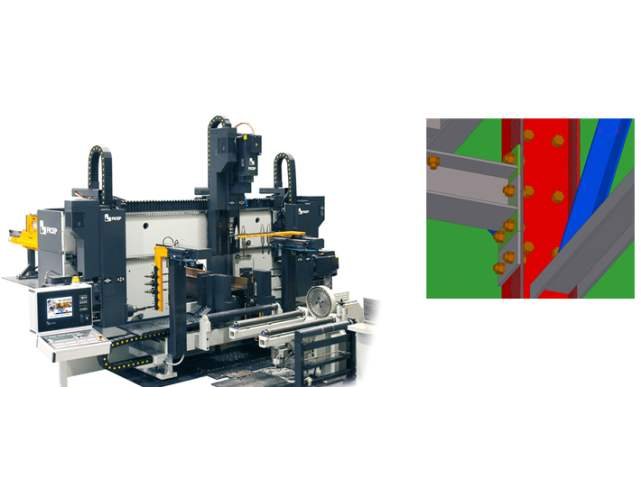

FICEP ENTERPRISE DJ three spindle beam drilling machines are optionally equipped with automatic tool-changer ...

  • FICEP ENTERPRISE DJ three spindle beam drilling machines are optionally equipped with automatic tool-changer ...

    FICEP ENTERPRISE DJ three spindle beam drilling machines are optionally equipped with automatic tool-changer ... Ficep027

    Features include:

    FICEP ENTERPRISE DJ three spindle beam drilling machines are optionally equipped with automatic tool-changer on each head and, thanks to the complete "closed loop" electronic control, in addition to drilling they can also carry out milling, tapping, countersinking and scribing in order to mark material with part numbering or layout marking for welding and fit up purposes.

    The drilling heads are equipped with the DJ spindle for high performances in deep drilling and standard drilling. FICEP beam drill machines can be combined with Ficep band saws (DJB) to carry out straight or mitred cuts (+45/-60 degrees-+20/60 degrees) or with plasma or oxy robotic thermal cutting units (DJRC- DJTT) to automatically cut shapes such as coping or flange thinning, ratholes, weld prepping, splitting in the section which cannot be done by a sawing unit.

    • Automatic and centralized lubrication system
    • Hydraulic Power pack and CNC developed with field bus technology (CAN-bus)
    • Ficep Minosse CNC unit with multi axes multi-tasking control for the highest performances

    FICEP ENTERPRISE DJ drilling heads have been designed for the heaviest of the drilling applications such as very hard material, very deep drilling or very large holes.

    Multiple Spindle CNC Drill Lines Model ENTERPRISE 2003 DJ 2504 DJ 4004 DJ
    Number of spindles 3 4 4
    Power per spindle 25 25 25
    Spindle speed range (RPM) 180 - 3,000 180 - 3,000 180 - 3,000
    Scribing on four sides Yes Yes Yes
    Maximum hole size 50mm
    2"
    50mm
    2"
    50mm
    2"
    Maximum section depth 2000mm
    78-3/4"
    2500mm
    78-3/4"
    4000mm
    13'
    Number of drill heads 3 3 4
    Diameters per head with tool changer 6 6 horizontal
    3 vertical
    6 horizontal
    3 vertical
