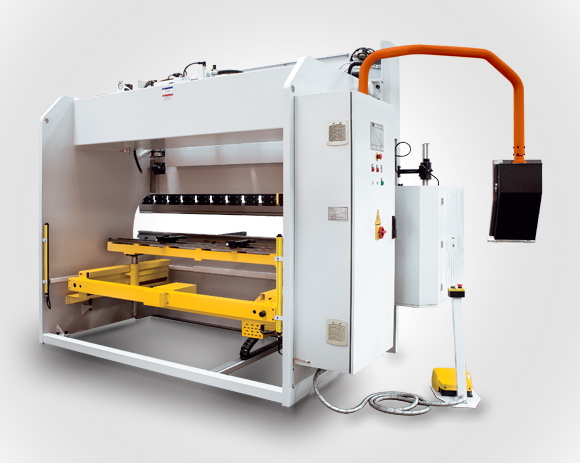

Ermak Power Bend Pro Pressbrake

  • Ermak Power Bend Pro Pressbrake

    Ermak Power Bend Pro Pressbrake Ermak008

    Features include:

    • Mono block, welded steel frame rigid to deflection moment and high tensile with ST44AI material.
    • Hydraulic proportional valve technology that provides high accuracy and high with linear scales at 0.0025 mm tolerance monitoring the top beam positioning 500 times per second
    • Delem ER70 controller.
    • Yl + Y2 + X Axis
    • Fast Servo controlled backguage system with ball screwed shaft in X-axis
    • Hydraulic system by proportional value system with the brand Hoerbiger
    • High accuracy Heidenhain - Givi measure linear encoders.
    • Electrical panel with cooling system, designed to meet CE Standards and composed of automation and electrical equipments by Siemens
    • Automatic tonnage adjustment, with proportional valves
    • Hardened, ground and standard segmented 835 mm top tooling system.
    • Die block with 4 V's.
    • Promecam clamping system with quick release.
    • User-friendly, moveable and ergonomic control panel carrying all buttons
    • Laser front guards
    • Light guard positioned at the back side of the machine
    • Multiple point parallelism adjustable back gauge bar, back gauge fingers with the accuracy of 0.01
    • Height adjustable and movable sliding front support arms
    • 410 mm throat depth
    • Conforms to EU machine safely directives and CE Regulations
    Ermak Powerbend Pro, View 1 Ermak Powerbend Pro, View 2 Ermak Powerbend Pro, Reverse Side
