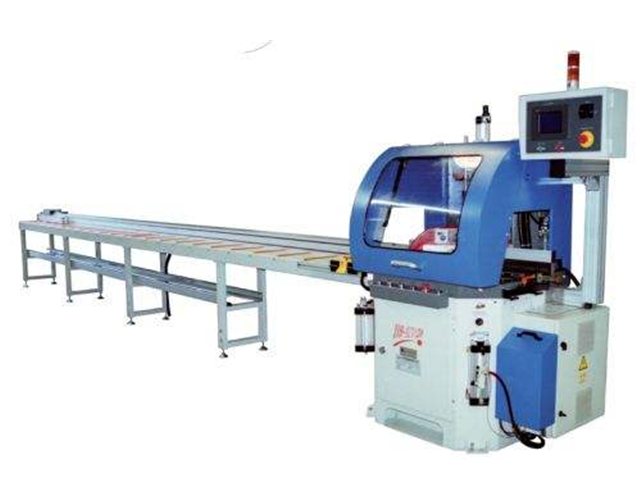

JIH-I JIH-20 Semi Automatic Pop Up Mitre Saw

  • JIH-I JIH-20 Semi Automatic Pop Up Mitre Saw

    JIH-I JIH-20 Semi Automatic Pop Up Mitre Saw Jih001

    Features include:
    • Automatic feed roller table
    • Standard length of 7m (3 to 6m optional);
    • Positioning accuracy of ±0.1 mm;
    • 50kg capacity (push & holding force);
    • Positioning speed 20~60 m/min.;
    • Servo drive motor 0.4 kW



    DESCRIPTION JIH-20C
    Cutting angle’s
    Blade diameter
    Blade bore
    Blade rotation speed
    Motor
    Table area    		 0~45° or 90°
    Ø500 mm
    Ø25.4 rpm
    3600 rpm
    5 hp
    900 x 900 mm
