Robland Z400-EL Panel Saw

  • Robland Z400-EL Panel Saw

    Robland Z400-EL Panel Saw robalnd-z400-el

    Sliding table panel saw by Robland, 3200mm, 330 to 400mm blade. Cutting depth at 90deg = 125mm, at 45deg = 90mm. Scoring unit with 120mm blade. 7kW main motor.

    Specifications:

    • Motor: 7kW, speeds: 3000 / 4000 / 5000 rpm
    • Cast iron table size: 985 x 710mm
    • Sliding table dimensions: 3200 x 420mm
    • Dimensions cross-cut-table: 1420 x 650mm
    • Dimensions sliding table: 3200mm x 420mm (option 2500/3800mm)
    • Max. cutting depth: 125mm at 90deg, 90mm at 45deg
    • Cutting width parallel fence version Z400, Z400-EL: 1000 /1350 / 1525mm
    • Cutting width parallel fence version Z400-X1, Z400-X3: 1250 /1500mm
    • Length of swivelling cross-cut fence: 2295mm
    • Scoring unit blade and bore:: 120mm / 20mm
    • Scoring unit max. cutting depth: 3.5mm
    • Scoring unit motor: 1.3kW, 8,200 rpm
    • Weight: 850kg

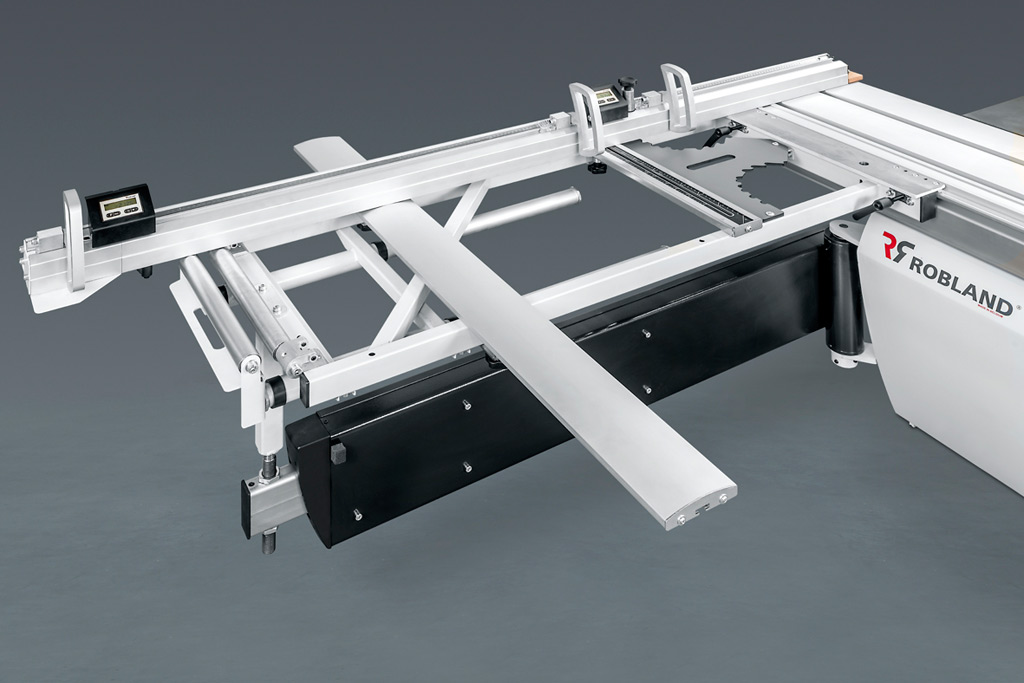

    Robland Z400-EL Panel Saw Robland Z400-EL Sliding Table Detail Robland Z500 Overhead Saw Guard
