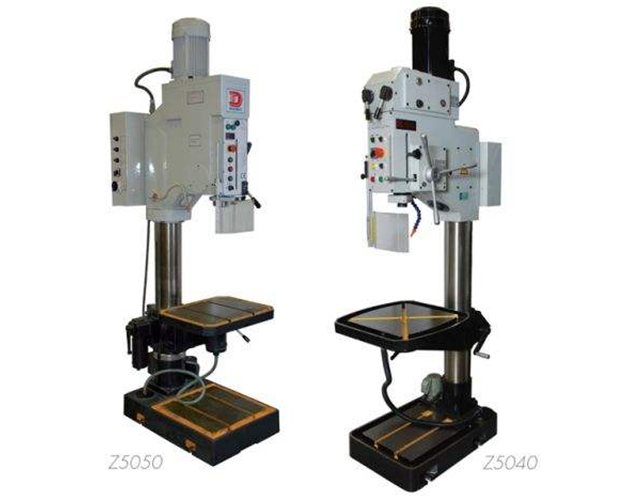

ROMAC Power Feed Drills Z5050, Z5040, T35

  • ROMAC Power Feed Drills Z5050, Z5040, T35

    ROMAC Power Feed Drills Z5050, Z5040, T35 Romac001

    Features include:

    - Easy operation with its unique motor-drive and manual-operated lifting device.
    - The robust working table can be rotated 180°and can be tited ±45°.
    - Equipped with coolant system and tapping mechanism.
    - Equipped with overload protection the drill offers powerful spindle motor designed according to IEC standard.


    - Drill chuck;
    - Arbor;
    - Taper sleeve;
    - Drift;
    - Eyelet bolts;
    - Wrench.

    Special accessories:
    - Multi-spindles;
    - Angle vice;
    - Safety guard.



    Model

    Z5050

    Z5040

    T-35

    Max.Drilling capacity (mm)

    50

    40

    35

    Max.Tapping capacity (mm)

    M30

    M27

    M20

    Diameter of column (mm)

    180

    160

    120

    Spindle travel (mm)

    240

    180

    150

    Distance spindle axis to column generating line (mm)

    360

    360

    320

    Min.Distance spindle nose to table (mm)

    460

    460

    330

    Max.Distance spindle nose to table (mm)

    1200

    1200

    1150

    Spindle speeds range (r/min)

    42-2050

    42-2050

    75-3010

    Spindle speeds series

    12

    12

    8

    Dimension of worktable surface (mm)

    550x470

    550x470

    500x670

    Table travel (mm)

    550

    550

    520

    Dimension of base table (mm)

    450

    440

    400

    Overall height (mm)

    2380

    2330

    1978

    Main motor (kW)

    2.2/2.8

    2.2/2.8

    1.5/1.8
