Hymson 4kw Fibre Laser

  • Hymson 4kw Fibre Laser

    Hymson 4kw Fibre Laser hymson-4kw-fibre-laser

    Hymson Fibre Laser with 3 x 1.5 meter sheet capacity, 4kw, fully enclosed structure.

    Description:

    • Processing area: 3000 x 1500 mm
    • Accuracy: -
    • X/Y-axis positioning: +/- 0.03mm
    • X/Y-axis repeatable +/- 0.02mm
    • X/Y- axis max. positioning speed: 120 m/min
    • X/Y- axis max. acceleration: 1.0G
    • Max. load of work table: 800kg
    • Weight: 8000kg
    • Machine construction: Hymson patent honeycomb welded structure
    • Tables: Two exchangeable shuttle tables
    • Enclosure: Fully enclosed with side and top covers
    • Guards: Light guard

    Complete with:

    • 4kw MAX Laser
    • Top Star Dust Collector
    • Consumable service package (see below)

    Main configuration and features:

    • Main configuration and features
    • Cutting head: RAYTOOLS (Swiss)
    • Servo motors: SANYO DENKI (Japan)
    • Reducer: APEX (Taiwan)
    • Gear and Rack: APEX
    • Guides: HIWIN (Taiwan)
    • Gas Regulator AVENTICS (Germany)
    • Automatic lubricating system for the guide rails
    • Intelligent exhaust system
    • Dual temperature-control water chiller
    • CypCut control system with inner Nesting
    • Separated electric stabilizer
    • Auto-focus

    Consumables included:

    • 4 each Single Nozzle 1.5, 2.0 and 2.5
    • 4 each Double Nozzle 1.0, 1.2, 1.5, 2.0. and 2.5
    • 2 off Seal rings
    • 10 off Protective Lens
    • 1 off TTW sensor line
    • 1 off Sensor signal line

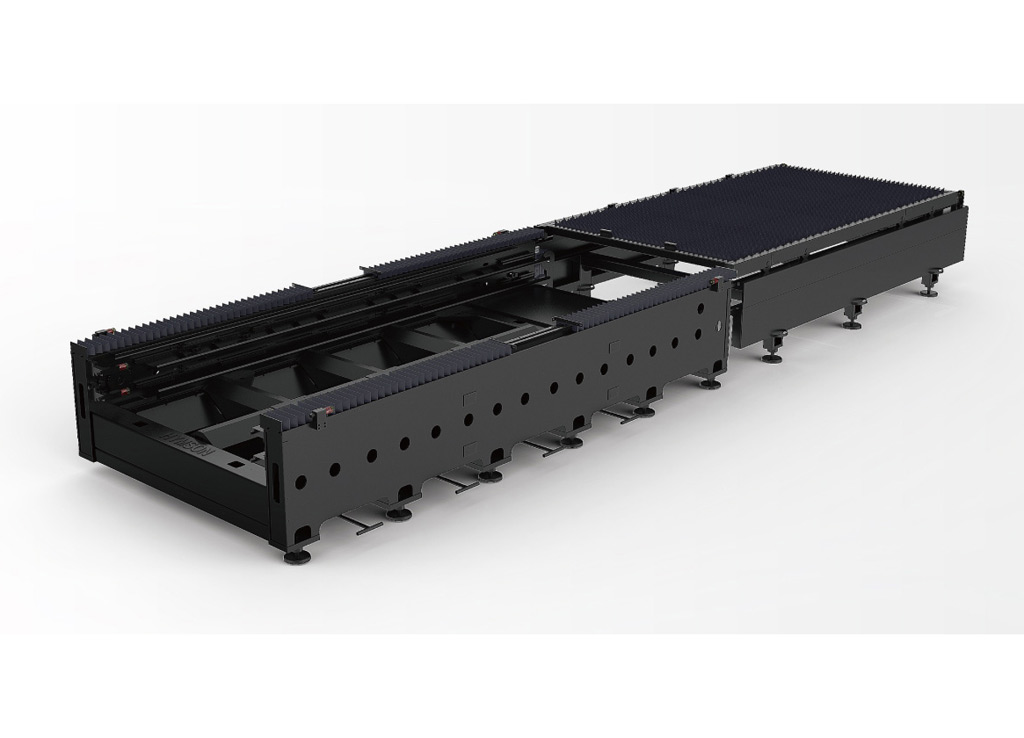

    Hymson 4kw Fibre Laser with 3 x 1.5 meter sheet capacity Hymson 4kw Fibre Laser machine frame
