There is nothing more productive than this one in the market.
If your needs are purlins or roof support beams this is what you are looking for.

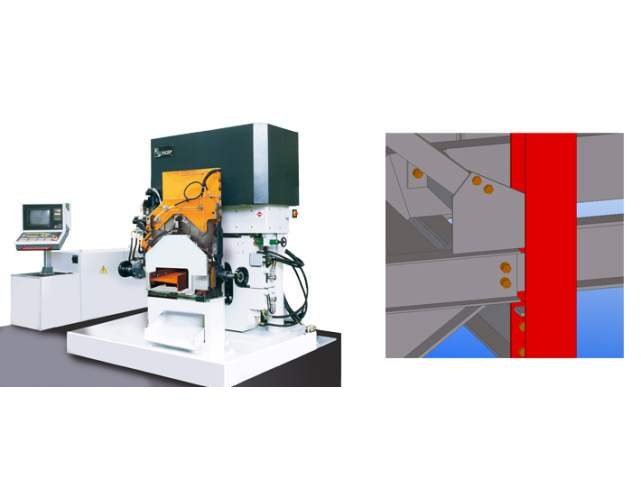

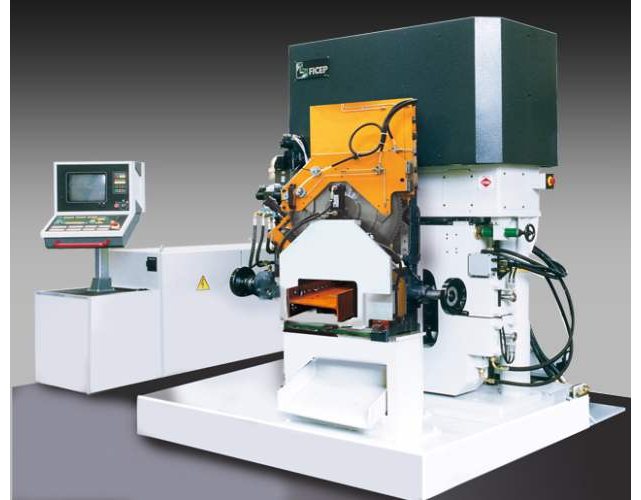

It can punch and cut beams apart from angles and channels.
This beam punch line can be equipped with a special carbide cold saw that makes cutting speed unmatched.
This carbide saw brings this application to another level of flexibility making set up times practically nil when switching from one profile type to the other.
Specifications
|
PUNCHING & CUTTING SYSTEM |
306 PS |
|
Flats Min.(mm/in)
Max.(mm/in)
|
100/4
300/12
|
|
Angles Min. mm
in
Max. mm
in
|
50x50x6
2x2x1/4
150/150x16
6x6x5/8
|
|
Channels Min. (mm/in)
Max. (mm/in)
|
80/3
300/10
|
|
Beams Min. (mm/in)
Max. (mm/in)
|
80/3"
10"
|
|
Vertical Unit |
1 |
|
Horizontal Units |
2 |
|
Max.Punching Capacity kN(each unit)
US tons
|
480
53
|
|
Max. Punching Diameter with standars tool (mm/in) |
27/1 |
|
Number of Punches (Horizontal Units) |
2+2 |
|
Number of Punches (Vertical Unit) |
2 |
|
Shearin Unit Double Cut (Option)
Max. Shearing Capacity kN
|
800 |
|
Sawing Unit (Option) |
Disc |
