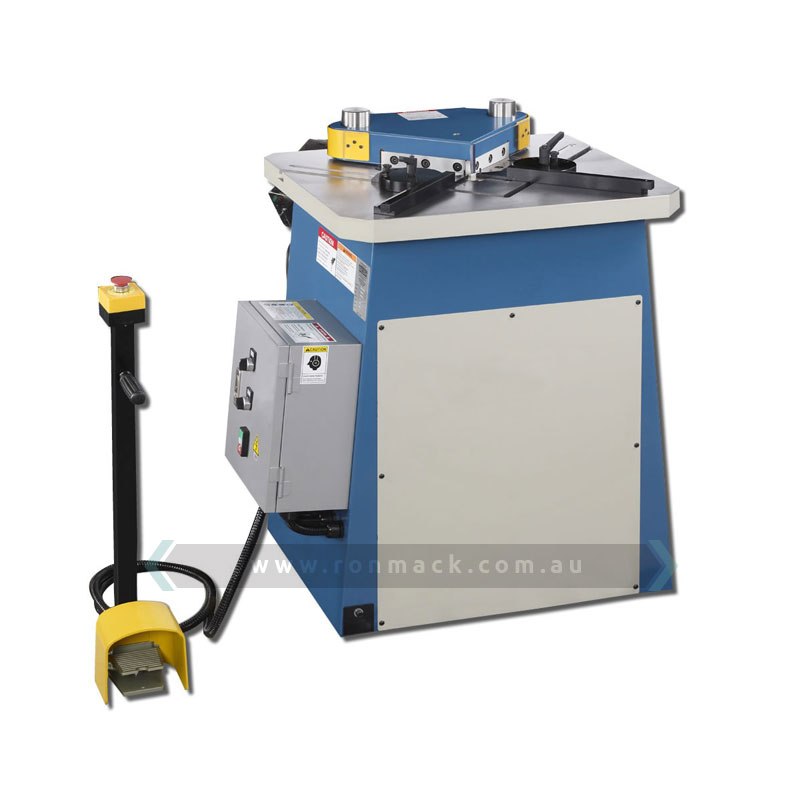

The PN-4200 hydraulic notcher makes accurate corners quickly and efficiently with a capacity up to 4mm mild steel; the blades are fixed at 90° for a perfect notch every time. Complete with safety foot pedal control and easy to adjust squaring guides.
Specifications:
-
cutting capacity 200x200mm
-
blade length 220x220mm
-
table size 695x595mm
-
50 strokes per minute
-
working force 22T
-
motor 3kW, 415V
-
hydraulic oil capacity 35l
-
capacity: mild steel R=42hg/mm² 4mm, R=60kg/mm² 3mm
-
operating noise level 70dB
-
dimensions 790x520x1160mm
-
packing size 940x730x1110
-
weight: net 375kg, gross 410kg
