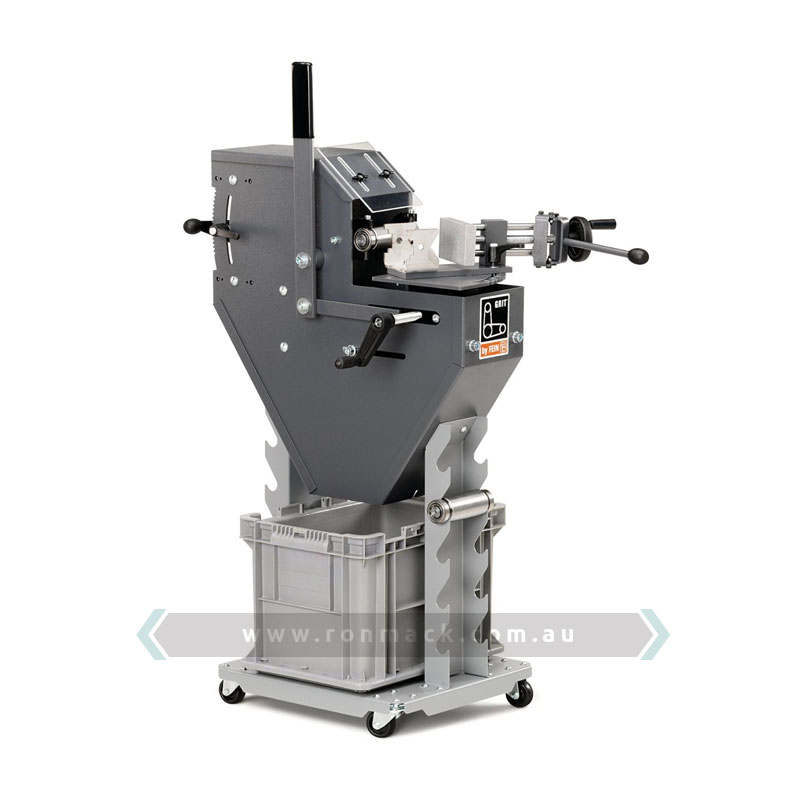

GRIT GXR Radius Grinding Module

  • GRIT GXR Radius Grinding Module

    GRIT GXR Radius Grinding Module Grit008

    Purchase GRIT Grinders direct at our online store

    Grinding exact radii on pipes is all a question of choosing the right machine. In just a few simple steps, adding the GRIT GXR module will transform your GX 75 (or 75 2H belt) grinder into a professional radius grinder – equipped with depth stop, cross slide and quick clamping system as standard. This makes accurate grinding not only straightforward but much more comfortable too.

    • Accurate grinding of profiles and pipes between 16 and 75 mm in diameter
    • Accurate and comfortable working, versatile quick clamping for round & square pipes or solid material
    • Workpiece can be clamped without tools, the vice is equipped with durable stainless steel jaws
    • High precision with integrated depth stop
    • Fewer burrs and less tarnishing when machining stainless steel (with GRIT GX 75 2H/low speed)
    • High level of flexibility as you can use an adapter to combine the machine with the GRIT GI range
    • Removable dust container can be filled with water for safe removal of hot swarf & sparks
    • Pipe diameter range: 16 to 75mm
    • Attack angle: 30° to 90°
    • Max. dimension of profiles / flat: 75x75mm
    • Belt dimensions: 75 x 2250mm
    • Weight: 54kg
    • Included: contact rollers 42.4 & 48.3mm, dust container, 75 x 2250mm grinding belt (grit 36 Z)
