FICEP Roller feed punch and shear angle line - A Series

  • FICEP Roller feed punch and shear angle line - A Series

    FICEP Roller feed punch and shear angle line - A Series Ficep037

    Features include:

    The Ficep CNC angle line solution gives you the opportunity to not only process angle but also channels and flats! The extensive Ficep angle line product line typically offers the following capabilities:

    - Punching;
    - Drilling;
    - Shearing;
    - Notching;
    - Marking.

    The "A" series in the Ficep line have been created for small and medium steel construction companies. These machines provide flexibility and simple use so they can be utilised by customers who do not have specialised staff and where production lots are short and diverse.
    Here, too, the range is complete and can be configured according to customer requirements.

    Series A, strength and innovative technology for top level products.

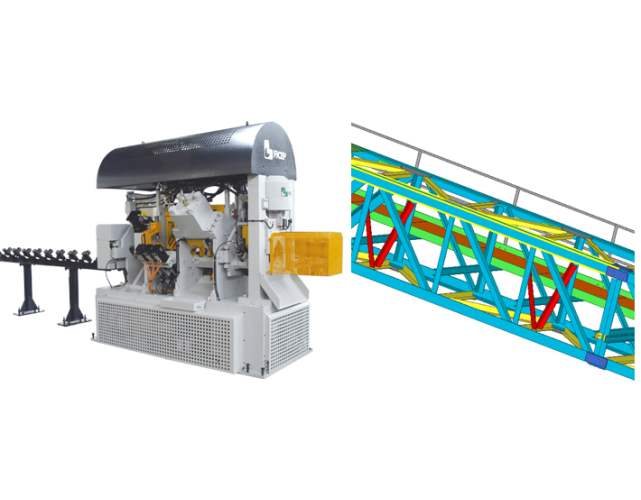

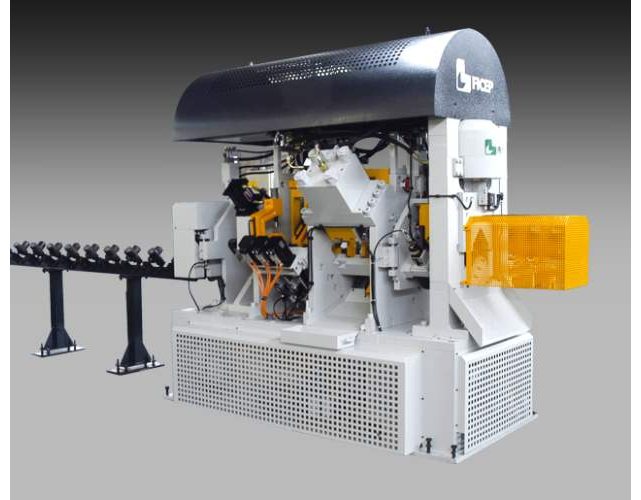

    The punch and shear lines in the "A" series are characterised by the input of material by means of an innovative roller conveyor system. The operator only has to manually feed the angle onto the conveyor rollers, and then the machine automatically conveys and positions the piece according to its size.
    The roller system created by Ficep technicians allows precision with a minimum loss of material therefore reducing cost.

    The "A" range includes various sizes to cover all the more common sizes of angles used in steel construction.
    The lines of the "A" series also maintain the prerogative of being flexible and easy to configure according to the customer’s requirements.
    The basic machine can be configured with options of:


    - 1/2/3 diameters per flange.
    - written marks programmed by the CNC
    - supplementary press unit for housing supplementary rapid change tools for notching, marking, or double punch operations.

    Each diameter is managed by the CNC on an infinite number of surface types.

    Each punch is housed in a special rapid-change holde.

    Model A 102 A 162 A 164 A 166 A 204 A 206
    Max angle
    mm
    in

    100x100x10
    4x4x5/16

    160x160x16
    6x6x5/8

    160x160x16
    6x6x3/4

    160x160x16
    6x6x3/4

    200x200x25
    8x8x1

    200x200x25
    8x8x1
    Punch tons 400 kN
    44 US tons
    650 kN
    72 US tons
    720 kN
    80 US tons
    720 kN
    80 US tons
    1000 kN
    110 US tons
    1000 kN
    110 US tons
    Sizes per leg 1 1 2 3 2 3
    Flats no optional optional optional optional optional
    Channels no no optional optional optional optional
    Notching optional optional optional optional optional optional
    Measuring system Roller Feed Roller Feed Roller Feed Roller Feed Roller Feed Roller Feed
