FICEP Gemini CNC Gantry Plate Processing System

  • FICEP Gemini CNC Gantry Plate Processing System

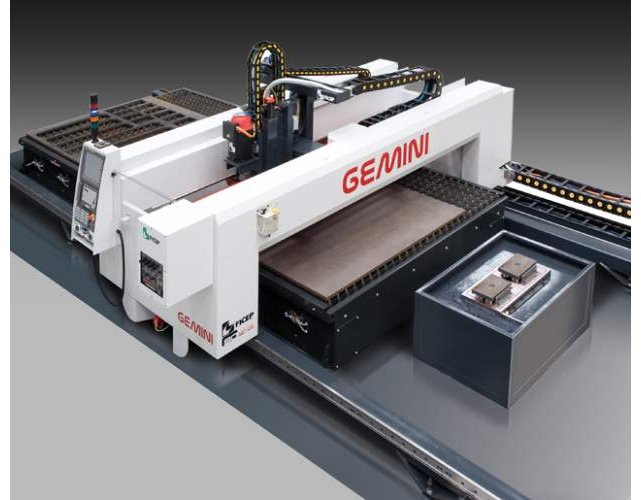

    FICEP Gemini CNC Gantry Plate Processing System Ficep013

    The High Performance Gantry Type GEMINI from Ficep offers accuracy and speed for plasma cutting, drilling, tapping and milling of steel plate.

    Available in a range of sizes to suit your workload or workshop floor space the Gemini HP, HD & XD range can process standard steel plate sizes for widths of 2.5 metres up to 4 metres. Standard length capacity is 6.1m with options available to any length required.

    A high speed 600rpm 27Kw spindle offers accurate drilling, tapping & milling in a range of materials with the option of a second spindle head on the larger machines.

    All versions can be fitted with Plasma or Oxy cutting heads with a 2nd plasma head available on the larger machines. The Gemini XD also offers the capacity to fit a robotic bevelling plasma torch for cutting complex shapes.

    Features include:

    • Widths of 2.5m, 3.1m or 3.6m
    • High performance spindle with a ball screw feed for 6,000 RPM
    • The system can be provided with two drilling spindles and three torches for increased productivity.
    • Unique secondary "X Axis" permits hole patterns to be generated without having to reposition the gantry.
    • Optional automatic chip evacuation.
    • Spindle speeds up to 6,000 RPM with up to 27Kw spinder motor.
    • Oxy-fuel and plasma cutting systems.
    • Optional bevelling plasma torch.
    • Guaranteed accuracy with rack and pinion positioning and measuring systems.
    • Irregular stock plates or drops can remain on the table and utilized later without having to unload the drop only to return it to the table later.
    • Since the material clamp is internal to the Gemini, the entire stock can be used to minimize scrap.
    • Guaranteed accuracy regardless of rust and mill scale
    • Automatic tool changer for up to 24 tools
    • Can be supplied with either water table or downdraft table with fume/dust filter.

    DESCRIPTION

    Gemini HP Gemini HD Gemini XD
    Plate Width (mm)
    2500 - 3200
    2500 - 5500
    3000 - 4000
    Plate Length (mm)
    6100 - 24000
    6100 - 24000
    6100 - 24000
    Drills
    Yes
    Yes
    Yes
    Tools
    8
    8 / 16 / 32
    8 / 16 / 32
    Second Drill Head
    No
    Optional
    Optional
    Secondary X Axis
    Yes
    Yes
    Yes
    Chip Evacuation
    Optional
    Optional
    Optional
    Plasma
    Optional
    Optional
    Optional
    2nd Plasma Head
    No
    Optional
    Optional
    Oxy/Fuel (up to three torches) Optional Optional Optional
    Bevelling Plasma Torch No No Optional

    FICEP Gemini CNC Gantry Type Plamsa Plate Cutting & Milling
