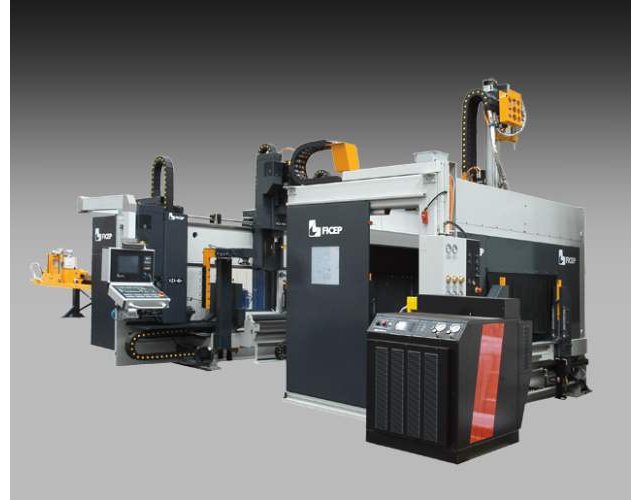

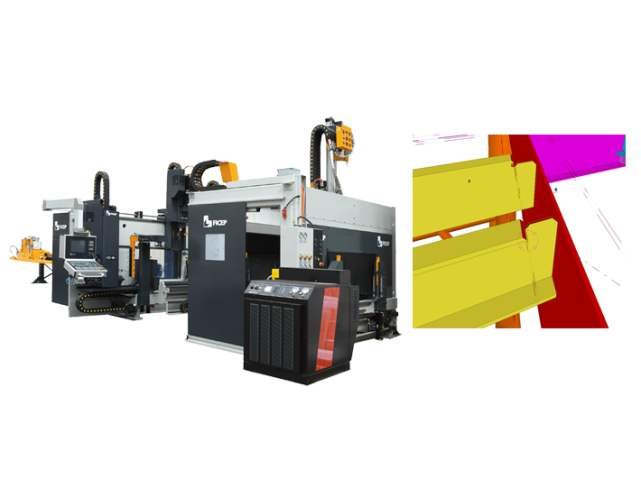

    FICEP Multi spindle drill robotic coper DJTT - Enterprise DJTT Series Ficep026

    Features include:

    The ENTERPRISE DJRC multi spindle beam drilling and coping machines are optionally equipped with automatic tool-changer on each head and, thanks to the complete "closed loop" electronic control, in addition to drilling they can also carry out milling, tapping, countersinking and scribing in order to mark material with part numbering or layout marking for welding and fit up purposes.

    • Automatic and centralized lubrication system
    • Hydraulic Power pack and CNC developed with field bus technology (CAN-bus)
    • FICEP Minosse CNC unit with multi axes multi-tasking control for the highest performances
    • FICEP ORIENT DF beam drill machines are combined with plasma or oxy thermal cutting units (RC) to automatically cut shapes such as coping or flange thinning, ratholes, weld prepping, splitting in the section which cannot be done by a sawing unit.

    This combination of drilling and cartesian semispheric robotic coping represents a unique solution in versatilità. If there is a difficult shape, a funny shape, an accurate connection shape to be realized on a long profile this machine can do it.

    CNC multi spindle drill robotic coper ENTERPRISE 2004 DJTT 2504 DJTT
    Number of spindles 3 3
    Power per spindle 25 20
    4 side scribing Yes Yes
    Spindle speed range RPM 180-3,000 180-3,000
    Maximum hole size 40(50)mm
    1-9/16"(2")
    40(50)mm
    1-9/16"(2")
    Maximum section depth 2000mm
    78"
    2500mm
    98"
    Number of drill heads 3 3
    Diameters per head with tool changer 6 6
    Number of robotic axis on the coper 5 6
    Cutting torch Oxy/Fuel-Plasma Oxy/Fuel-Plasma
    Weldprep in the flanges No Yes
    Weld prep in the web Yes Yes
    Programmable weld prep angles ±45° ±45°
    Tube bottom side cutting No Yes
