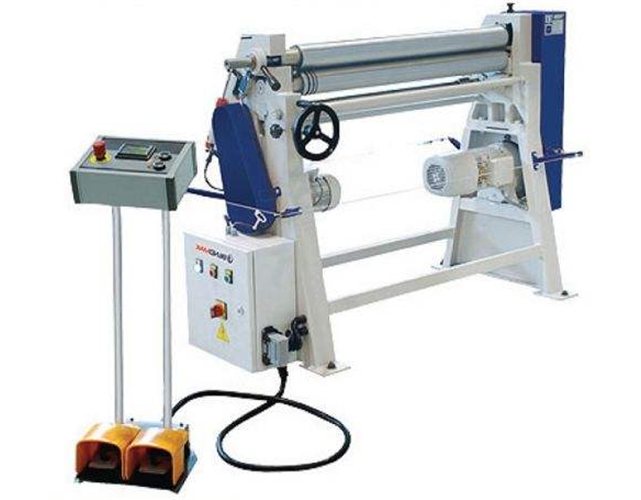

Standard Accessories
- Cast iron body
- Manual operating
- Opening top roll to side after bending for taking out the material easily Induction hardened rolls
- Cone bending device
- Movement of the back and bottom rolls up and down manual with hand wheel
- Portable control panel in order to control material from required locations with foot pedal (If electric driven has been selected)
- Emergency stop button
- In accordance with EU norms
Additional accessories when required
- Top and bottom rolls driven by brake electric motor and gearboxes in gear system
- Back roll powered by electric motor
- Induction hardened rolls
- Digital readout for displaying the position of back roll
Specifications
|
Type |
Working
Length
|
Pre- Bending
|
Max. Thickness
|
Top Roll
|
Min. Bending
|
Motor Power
|
Length
|
Height
|
Width
|
Weight
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kw
|
mm
|
mm
|
mm
|
kg
|
|
AS 70-10/4.0 |
1050
|
1.5
|
1.8
|
70
|
105
|
1.1
|
1300
|
1100
|
700
|
320
|
|
AS 70-15/3.5 |
1550
|
1.0
|
1.2
|
70
|
105
|
1.1
|
2100
|
1100
|
700
|
450
|
|
AS 75-12/3.0 |
1250
|
1.5
|
2.0
|
75
|
117
|
1.1
|
2300
|
1100
|
800
|
460
|
|
AS 90-10/2.0 |
1050
|
3.0
|
3.3
|
90
|
130
|
1.1
|
2100
|
1130
|
800
|
570
|
|
AS 90-12/4.0 |
1250
|
2.5
|
3.0
|
90
|
130
|
1.1
|
2350
|
1130
|
800
|
500
|
|
AS 90-15/5.0 |
1550
|
2.2
|
2.5
|
90
|
130
|
1.1
|
2600
|
1130
|
800
|
600
|
|
AS 95-20/4.0 |
2050
|
1.5
|
1.8
|
95
|
135
|
1.1
|
3030
|
1130
|
800
|
635
|
• Data based upon steel 240 N/mm2 yield point.
• For cone bending, all bending values must be considered 50% less.
• All specifications are subject to change without notice.
|
