GRIT GX - GXR

Everything simply fits together: Pipe notching module GXR

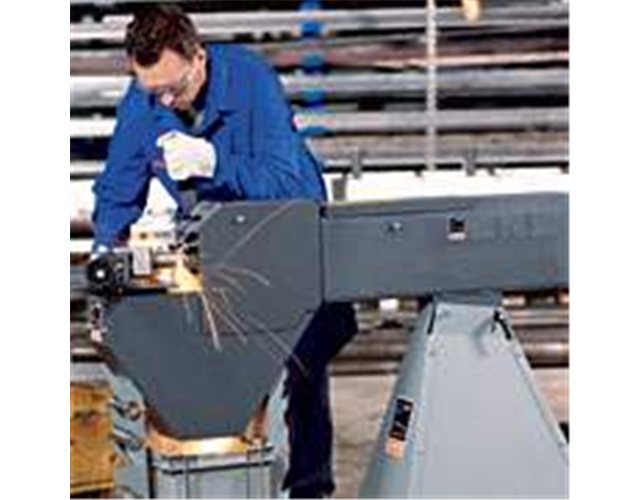

Grinding exact radii on pipes is a question of the right machine: By attaching the GXR module, a GX 75 2H basic unit belt grinder converts into a professional radii grinding machine in just a few steps - standard-equipped with depth stop, traverse carriage, and quick-clamping. Grinding down for precision fitting becomes so easy - and much more user-friendly.

It makes no difference whether pipes, profiles, or solid material is being ground - the radii grinding module GXR is optimally suited for that. And that is a standard feature: for example with a traverse carriage that is precisely and quickly set to the required angle as well as a vice with stainless steel clamping jaws and unique fast clamping*. That guarantees precise and sure grinding.
(* patent applied for)

Custom fit contact rollers

Pipes sized Ø 16 - 75 mm and an attack angle of 30° to 90° can be ground to a perfect fit with the pipe notching module. The extensive GRIT contact roller selection reliably covers all usual pipe diameters.

With length stop for production in series
The retrofitable length stop for the GXR pipe notching module ensures consistently precise results in series production. It can be attached later and can be set along a length of 1,000 mm.

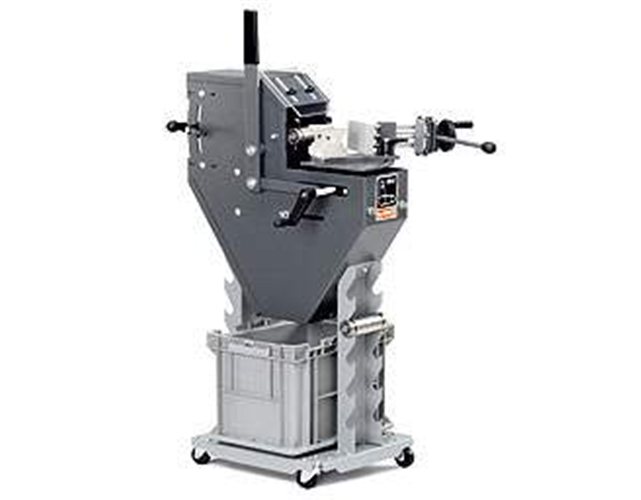

GXR
- For precise grinding of profiles and pipes from Ø 16-75 mm;
- For angles of
30° to 90°
30° / max. Ø 37,5 mm
45° / max. Ø 53,0 mm
60° / max. Ø 64.5 mm
90° / max. Ø 75,0 mm
- Precise and user-friendly working by integrated depth stop and vice with fast-clamping for round and square pipes as well as solid material;
- Contact rollers are available in all common sizes;
- Vice with stainless steel clamping jaws;
- In combination with GX 75 2H: Low speed (1,500 rpm) optimal for processing stainless steel. Less burrs and tarnish;
- Easy handling by four easy-to-steer transport casters;
- Can also be combined with the GI programme (GI 75 / GI 75 2H). The adapter 6 99 02 186 00 0 is required for this.
