GRIT GX - GX 75 / 75 2H

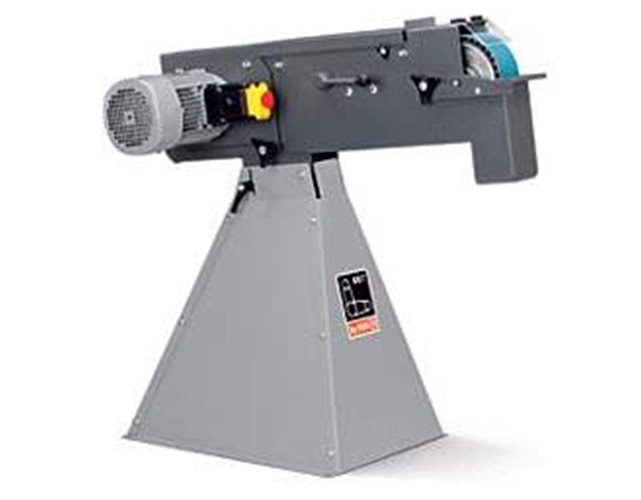

The perfect base: Belt grinder GX 75 / GX 75 2H

GX 75 or GX 75 2H is the basis for the system. A powerful belt grinder on which you can rely for professional applications: robustly built, easy to assemble, and equipped with everything that eases the work and the operation.

Plane grinding is part of the standard features of the GRIT. A large grinding area of 75 × 420 mm is just as standard for both GX 75 machines as a height-adjustable plane grinding table and the easy belt adjustment.

Versatility for every job

The great power output of the motors provides the GX 75 belt grinders with outstanding capacities. High grinding capacity in brief time is thereby guaranteed - just as comfortable working. The GX 75 and the GX 75 2H are especially low in vibration during operation and facilitate exact working thanks to its patented belt tensioning system.

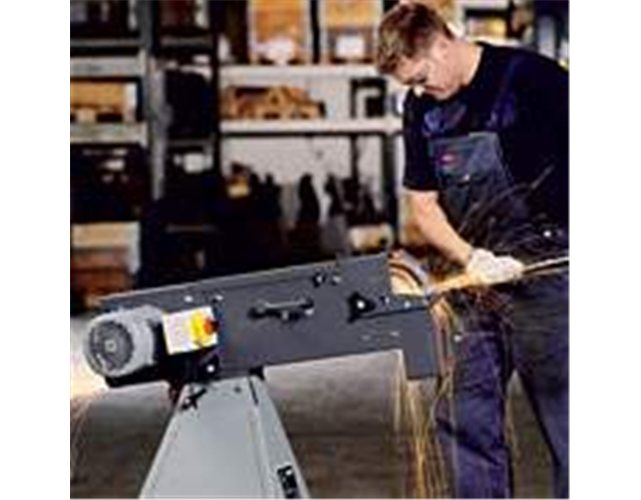

Whether grinding, weld seam polishing, chamfering, deburring, or plane grinding - with GRIT you always work optimally. And therefore also especially cost-efficiently.

GX 75 / 75 2H
- Robust AC motor provides grinding with steady speed;
- Speeds optimal for metal working: GX 75 with 3,000 rpm; GX 75 2H switchable to 1,500 or 3,000 rpm;
- Processing suiting the material by self-adjusting belt tension;
- Comfortable operation by adjustable work level, height-adjustable support for plane grinding, and easy belt adjustment;
- Great work reliability because of sturdy machine base and solid cutting table;
- Connector integrated for dust extractor (Ø 90 mm);
- Detachable swarf collector
