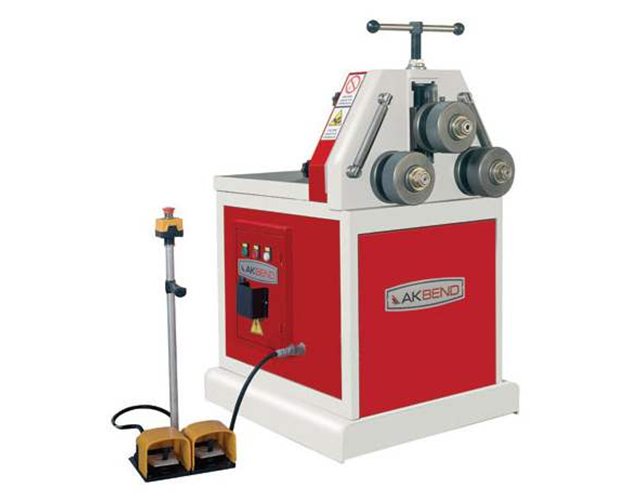

AKYAPAK presents extensive alternatives about big sized profile bending machines too.
Our machines are strong and reliable with their St 52 weld construction body. Minimum flexion causes less deformation, by the help of our machine enlarged roll diameters. By the help of big measurements of bearings, durability and high bending momentum can be obtained. Hydraulic cylinders" power enables to bend the bigger parts without any difficulty. Practical and universal rollers creates the possibility of easiness about bending various kinds of profiles, and this feature gives the opportunity of being more powerful and firm.
Our Profile Bending Machines are 3 Rolls driven. This feature allows to have the possibility of making, the high capacities bending processes, real. Secondly, our 3 Rolls Driven machine minimizes the slip of the materials during the bending process. The two bottom rolls are driven hydraulic and they can make their movements independent from each other. Therefore, in comparison with the machines which are driven from the top roll, our machine features enhance the ability of operators and give the opportunity to make pretending process on both edges.
Side supporters can move towards three directions, to reduce the deformations and to facilitate bending processes, especially about angles and spirals.
Standard Equipment
- Machine body is steel (St-52) construction.
- On APK 280 - 240 and APK 180 rolls are driven by hydraulic motor+planetary gearbox. On APK 550 rolls are driven via 3 separate hydraulic motor. On APK 300 top and lower rolls are driven with two separate planetary gearbox.
- Variable speed of rotation on APK180, 240, 280.
- Hardened rolls.
- Shafts made of special steel, hardened and grounded.
- On APK 550, APK 300, APK 280, APK 240 and APK 180 guide rolls are hydraulic adjustable.
- Horizontal working.
- Lower rolls hydraulic moveable up and down.
- Digital display for lower rolls.
- Separate and moveable control panel.
- Electrical and hydraulic protection against overloads.
- Manual lubrication
Special Equipment
- Special rolls for tubes, profiles and angles.
- Digital display for hydraulic guide rolls.
- Variable speed of rotation on APK 300, 360, 550.
- Special tooling systems for bending U-l-H profiles.
- Extended shafts. (APK-360 except)
- NC Playback Control System.
- CNC Graphic Control System.
