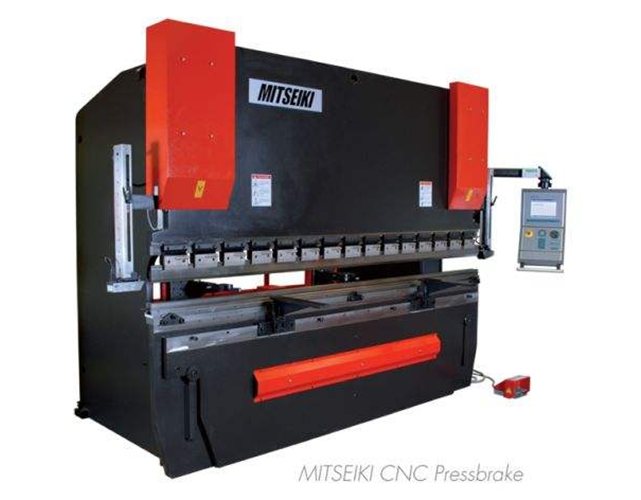

MITSEIKI Pressbrakes are synchro servo type, this ensures consistent and accurate bending beam parallelism tolerance to 0.01mm via Delem CNC controls.
Electronic-hydraulic Bosch-Rexroth servo system ensures high accuracy positioning.
All electrical components are of high quality supplied by Heidenhain, and Yasakawa.
Operating the machine is via a Delem DA65W CNC Controller on swivel pendant. This is programmable and controls the bend angle and back gauge movement.
Powered operated back gauge with 600mm travel using THK linear guideways and Blis lead ball screws.
Back gauge has options of R Z1 and Z2 axes.
The Delem control automatically sets the table crowning system to the material type, thickness and length giving you a high accuracy of bend angle along the length of the job.
Quick release style top tool clamping system clamps have safety groove to stop punch dropping.
Tooling available to suit your jobs.
Laser Safe light guards fitted to the beam of the machine. These are to the highest Australian safety standards and are not intrusive to the operation of the machine.
Machine operated by a mobile dual operation foot pedal.
