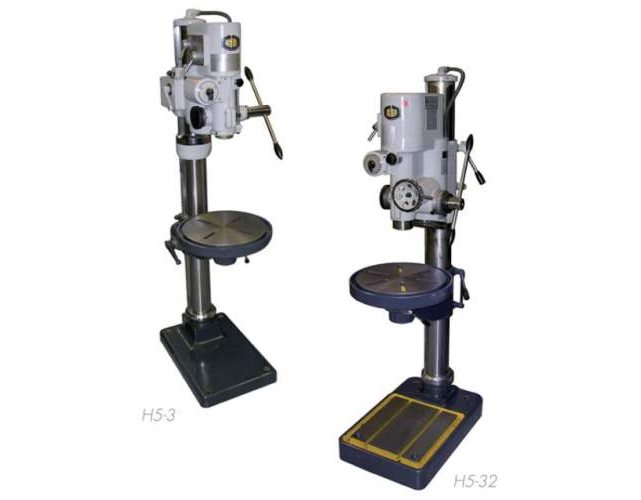

H5-3
Designed for drilling counter boring, spot facing, tapping etc. in small or middle sized components with maximum diameter of 25mm. It is intended for single piece, small batch or batch production in machining or repair shops.
Accessories Included: - Drill Chuck and Arbor;
- 2 – 3 Morse Taper Sleeve;
- Tool Drift.
H5-32
Designed for drilling, counter boring, reaming, tapping, spot facing etc. The maximum drilling capacity is 32mm on small or middle sized work pieces. It is widely used in machine works and repair shops for single piece or small lot production, having the features of abundant horsepower and high rigidity when compared with all the others of its kind at home and abroad.
Accessories Included: - Drill Chuck and Arbor;
- Tool Drift;
- 2 – 3 Morse Taper Sleeve.
Specifications
|
|
H5-3 |
H-32 |
|
Max. diameter (mm) |
25 |
32 |
|
Max. Spindle travel (mm) |
110 |
150 |
|
Dist. of Spindle Axis to Generating Line of Column (mm) |
240 |
300 |
|
Max. distance from spindle to table (mm) |
830 |
800 |
|
Max. Distance from Spindle to Baseplate Surface (mm) |
600 |
1225 |
|
Max. Travel of Drill Head (mm) |
140 |
270 |
|
Max. Travel of Table |
- |
- |
|
Spindle Taper |
Morse No.3 |
Morse No.4 |
|
Spindle Speeds |
12 Steps |
12 Steps |
|
Spindle Range (rpm) |
125-2880 |
78-2500 |
|
Motor |
0.85/1.1 kW |
1/1.3/1.7 kW |
|
Speed (rpm) |
1430-2870 |
705-950-1440 |
