- Movable head 45 left - 90 right;
- reduction unit in oil bath;
- sliding countervice for longitudinal cutting;
- quick locking vice;
- membrane pump for coolant;
- coolant filter;
- jet separation system to keep the blade oiled;
- bar support arm;
- bar stop;
- service tool;
- instruction manualand spare parts;
- 24 Volt low voltage installation with hold-to-run head control know.
- Electric motor single-phase 80 RPM kW1,5;
- Pneumatic vice with pedal control;
- steel pedestal.
Downloads
NEW 350 DV
TRS 300
Specifications
|
Model |
Angle |
|
|
|
|
Motor (kW) |
|
NEW 250DV |
90° |
40 |
70 |
70 x 70 |
55 x 95 |
0.95 - 1.32 |
|
45° |
35 |
65 |
55 x 55 |
50 x 60 |
|
TRS 300 |
90° |
45 |
80 |
80 x 80 |
100 x 70 |
1.1 - 1.5 |
|
45° |
40 |
80 |
70 x 70 |
80 x 70 |
|

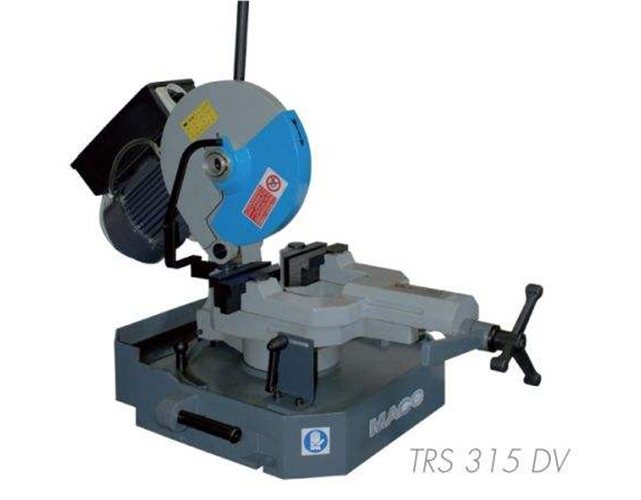

TRS 315 DV |
90° |
55 |
90 |
85 x 85 |
115 x 70 |
1.5 - 2.2 |
|
45° |
50 |
80 |
70 x 70 |
70 x 70 |
|
NEW 315 DV |
90° |
55 |
90 |
85 x 85 |
120 x 70 |
1.5 - 2.2 |
|
45° |
50 |
80 |
70 x 70 |
80 x 70 |
|
NEW 350 |
90° |
60 |
110 |
80 x 80 |
120 x 80 |
1.8 - 2.2 |
|
45° |
55 |
80 |
80 x 80 |
80 x 80 |
|
NEW 350 DV |
90° |
60 |
110 |
100 x 100 |
120 x 8 |
1.8 - 2.2 |
|
45° |
55 |
80 |
80 x 80 |
80 x 80 |
