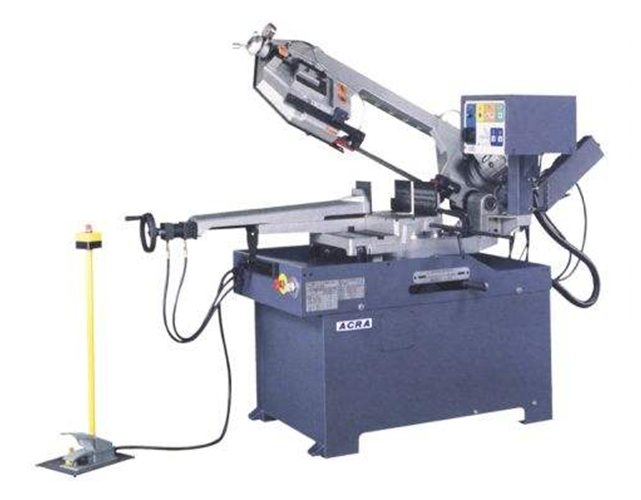

SPEEDER Euro-Type BANDSAW

Specifications

Specifications		FHBS-270DS			FHBS-310DSAV			FHBS-350DSAV
Shape Dimensions (mm)
Cutting Capacity	90°	227	220x220	260x110	250	240x240	310x210	270	260x260	350x220
	45°	150	145x145	200x125	200	180x180	200x140	240	220x220	240x160
	60°	90	85x85		120	95x95	120x95	160	150x150
	45° (L)	110	110x110	160x110	150	150x150	170x90	210	180x180	180x180
Power		1.5HP (1.1kw) 1430rpm			2HP (1.5kw) DC Motor			2-1/2HP (1.8kw) DC Motor
Speed		72m/min 36m/min			Variable speed 20 - 85 m/min			Variable speed 20 - 85 m/min
Blade Size		27 x 0,9 x 2460mm			27 x 0.9 x 2575mm			27 x 0.9 x 3160mm
Packing		1549 x 737 x 1054mm			1720 x 749 x 1575mm			1880 x 749 x 1715mm
Weight		280 / 330kgs			410 / 480kgs			460 / 530kgs
