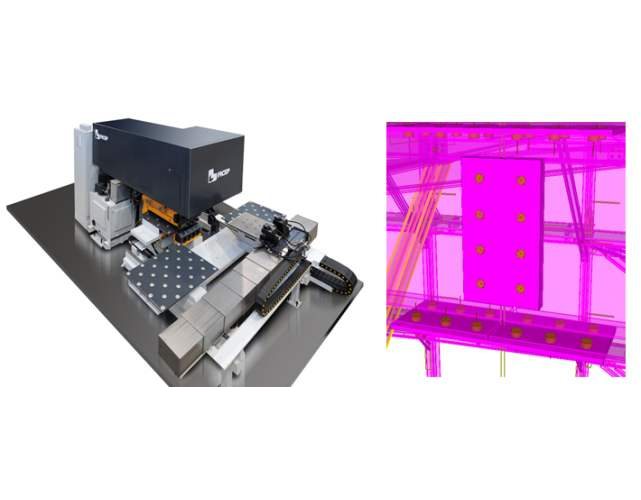

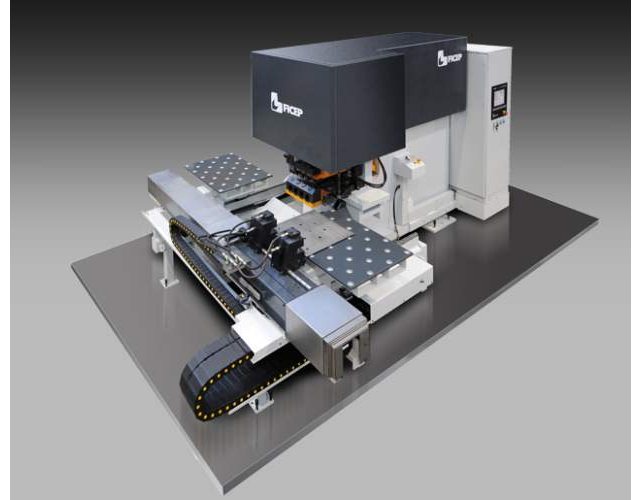

Hydraulic punching machine of the C-frame type, with a 500-800 mm throat depth, fitted with a tool having three (P 51) or four (P 81) selectable punches. Each punch has a punching force of kN 800 (P 51) or kN 1100 (P81) throughout its entire stroke.
One-piece steel frame containing the electric system, the hydraulic system and the CNC. The punching unit is supplied ready to work and does not require installation.
- Plate clamping system, self-adjustable to suit the plate thickness, used for both stripping during punching and for repositioning of the pinchers;
- When required, the machine can also be fitted with a drilling unit and/or a marking tool;
- Coordinate table to position the plate in the working area;
- Positioning system on the two axes of the plate holding carriage, complete with ball screws and servo motors;
- Plate holding carriage fitted with two pinchers, to clamp plates from 3 to 40 mm thick;
- Zero plate reference unit;
- Supporting table with balls to support the workpiece during processing;
- Plate clamping pinchers, hydraulically controlled, to clamp both plates;
- Hydraulic system complete with power pack fitted with an oil preheating system and circuitry for cooling with air/oil heat exchanger;
- Pneumatic system;
- Electric system complete with auxiliary pushbuttons and electric cabinet manufactured according to EN 60204-1 standards and located on the machine.
Ficep MINOSSE CNC Control System, with 2 axes, integrated into the punching unit.
Downloads
Product PDF
Product PDF2
Specifications
|
CNC plate detail punch duplicator |
P 51 |
P 81 |
|
X axis range |
Repositioning |
Repositioning |
Y axis range
mm
in |
500
19-5/8" |
800
31-1/2" |
|
Punch tonnage |
800kN
88 US tons |
1100 kN
110 US tons |
Maximum hole size
mm
in |
46
1-3/4" |
46
1-3/4" |
Maximum Punch thickness
mm
in |
25
1" |
25
1" |
|
Number of tools |
3 |
4 |
Maximum drill thickness
mm
in |
40
1-3/4" |
40
1-3/4" |
Drill power
kW
Hp |
5.5
7.5 |
5.5
7.5 |
