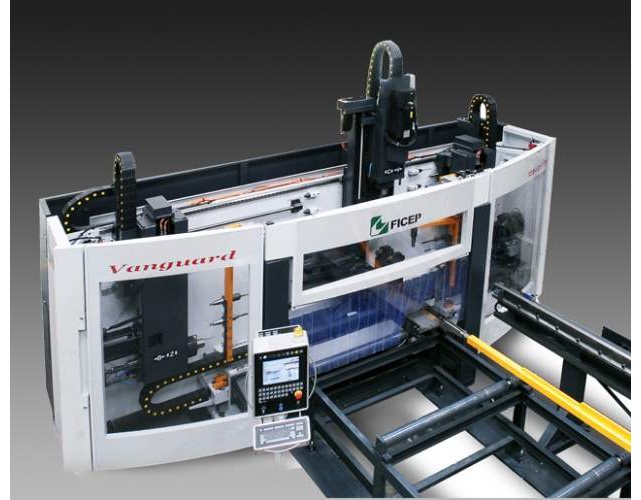

FICEP VANGUARD three spindle beam drilling machines are optionally equipped with automatic tool-changer on each head and, thanks to the complete "closed loop" electronic control, in addition to drilling they can also carry out milling, tapping, countersinking and scribing in order to mark material with part numbering or layout marking for welding and fit up purposes.
The drilling heads are equipped with the DF spindle for high performances in deep drilling and standard drilling. FICEP beam drill machines can be combined with Ficep band saws (DJB-DFB-DEB) to carry out straight or mitred cuts (+45/-60 degrees) or with plasma or oxy robotic thermal cutting units (DJRC- DFRC-DERC) to automatically cut shapes such as coping or flange thinning, ratholes, weld prepping, splitting in the section which cannot be done by a sawing unit.
Machine Features
- Automatic and centralized lubrication system
- Hydraulic Power pack and CNC developed with field bus technology (CAN-bus)
- Ficep Minosse CNC unit with multi axes multi-tasking control for the highest performances
Downloads
Product PDF
Specifications
|
3 SPINDLES DRILLING VANGUARD |
603 DF |
1003 DF |
1103 DF |
1203 DF |
|
X axis measuring system |
Laser/Carriage |
Laser/Carriage |
Laser/Carriage |
Laser/Carriage |
WebMin.
Max. |
60 mm
2-3/8"
610 mm
24" |
80 mm
3-1/8"
1050 mm
41-1/4" |
80 mm
3-1/8"
1100 mm
43-1/4" |
80 mm
3-1/8"
1220 mm
48" |
FlangesMin.
Max. |
30 mm
1-1/8"
310 mm
17" |
42 mm
1-5/8"
510 mm
20" |
42 mm
1-5/8"
510 mm
20" |
42 mm
1-5/8"
510 mm
20" |
|
Drill Heads No. |
3 |
3 |
3 |
3 |
|
Spindles per head |
1 |
1 |
1 |
1 |
|
Tools per Spindle |
1 (4) |
1 (4) |
1 (4) |
1 (6) |
|
Spindle Motor kW |
11 kW
15 hp |
15 kW (19)
20 hp (25) |
15 kW (19)
20 hp (25) |
15 kW (19)
20 hp (25) |
|
Max. Diameter using HSS tools |
40 mm
1 – 9/16" |
40 mm
1 – 9/16" |
40 mm
1 – 9/16" |
40 mm
1 – 9/16" |
|
CNC Axes No. |
7 |
7 |
7 |
7 |
