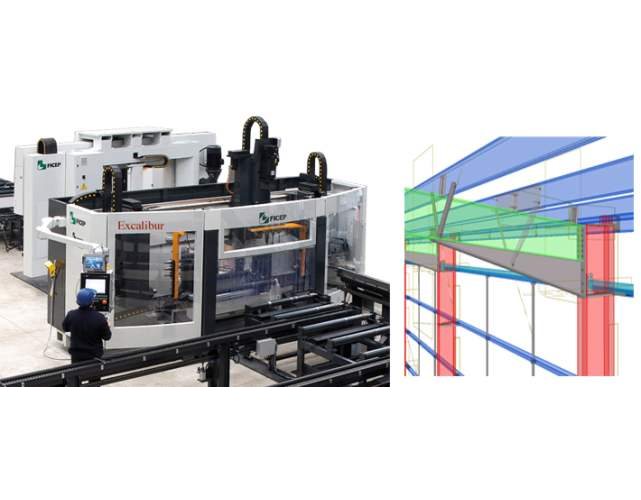

The EXCALIBUR DEB multispindle drill and saw machines are optionally equipped with automatic tool-changer on each head and, thanks to the complete "closed loop" electronic control, in addition to drilling they can also carry out milling, tapping, countersinking and scribing in order to mark material with part numbering or layout marking for welding and fit up purposes.
FICEP developed this new EXCALIBUR drilling head in order to allow carbide drilling for medium to light applications.
Machine Features
- Automatic and centralized lubrication system
- Hydraulic Power pack and CNC developed with field bus technology (CAN-bus)
- FicepMinosseCNC unit with multi axes multi-tasking control for the highest performances

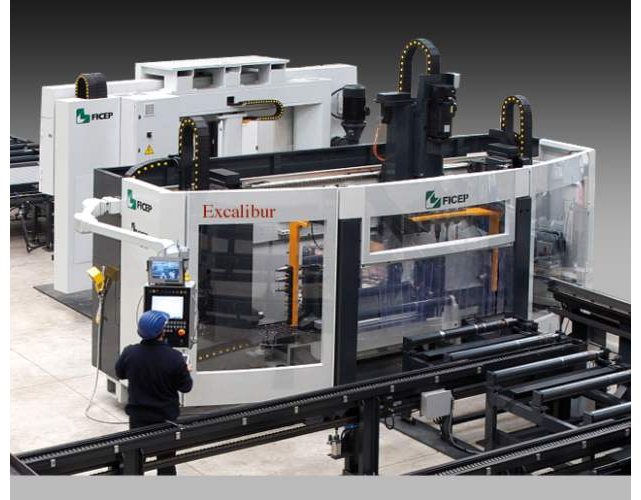

FICEP EXCALIBUR DEB beamline drill and saw machines are combined with Ficep saws (SCS) to carry out straight or mitred cuts (+45/-60 degrees). Optionally the saw can process mitres up to +60/-60 degrees.
Automatic unloading of trim cuts and short pieces is available with the patented magnetic device.
Different handling solutions are available in order to make the whole line fully automatic with minimum operator supervision.
Specifications
|
Three Spindle CNC Drill Line Model EXCALIBUR |
603 DEB |
1003 DEB |
1103 DEB |
|
Number of spindles |
3 |
3 |
3 |
|
Power per spindle |
18 |
18 |
18 |
|
Spindle speed range (RPM) |
180 - 2,500 |
180 - 2,500 |
180 - 2,500 |
|
Scribing on four sides |
Yes |
Yes |
Yes |
|
Maximum hole size |
40 mm
1-9/16" |
40 mm
1-9/16" |
40 mm
1-9/16" |
|
Maximum section depth |
610 mm
24" |
1015 mm
40" |
1100 mm
44" |
|
Number of drill heads |
3 |
3 |
3 |
|
Diameters per head with tool changer |
4 |
4 |
4 |
