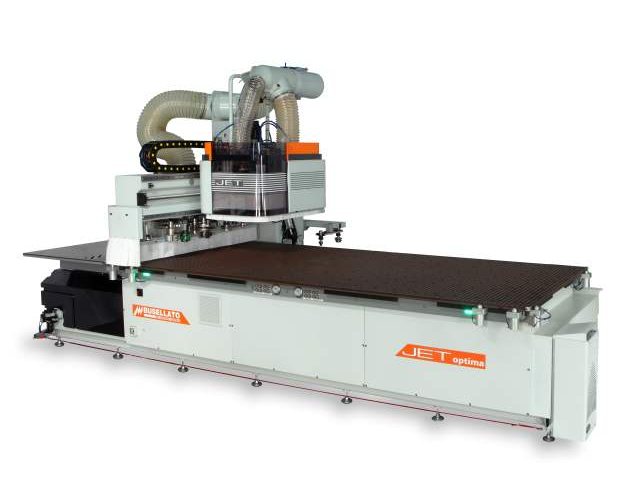

Compact, high performance CNC working centre for the production of office and home furniture. The work table is equipped with a reticular grid allowing nesting machinings and can be equipped with an automatic panel loading/offloading device.
- Various work table solutions according to standard panel dimensions.
- Aluminium or phenolic based synthetic fibre working table.
- Optional work table loading/offloading and cleaning system for a completely automated production process.
- Optional tool pre-setting device to automatically correct tool length, in order to optimize cut depth.
Downloads
Product PDF
Specifications
|
|
RT21 |
RT21 XL |
RT21 WF |
RT21 WF |
|
Working field X |
3056 mm (10ft) |
3686 mm (12ft) |
3686 mm (12ft) |
6146 mm (20ft) |
|
Working field Y |
1256 mm (4 ft) |
1256 mm (4 ft) |
1556 mm (5 ft) |
1556 mm (5 ft) |
|
Workpiece clearance |
130 mm
|
|
Electrospindle power |
11/13 kW (15/17 HP)
|
|
Spindles |
12/19/23/32 vertical
4/6 horizontal in X
2 horizontal in Y
|
|
Tool changer |
up to 12 tools
|
